Non Clog and Waste Water Pumps

Today, water treatment, its conservation, recycling & its reuse has assumed a greater significance. Thus, the demand for pumping / treating waste water is going up steadily. The present methods are also more versatile & thus demand greater reliability as far as pumping needs are concerned. Darling Pumps having worked effectively in this sector can offer reliable & effective pumping solution.

As we have been working in this sector for over 4 decades, we have made our pump designs more adaptable to challenges in this sector… not only in terms of capacities but also in terms of MOC’s & many significant add-on features.

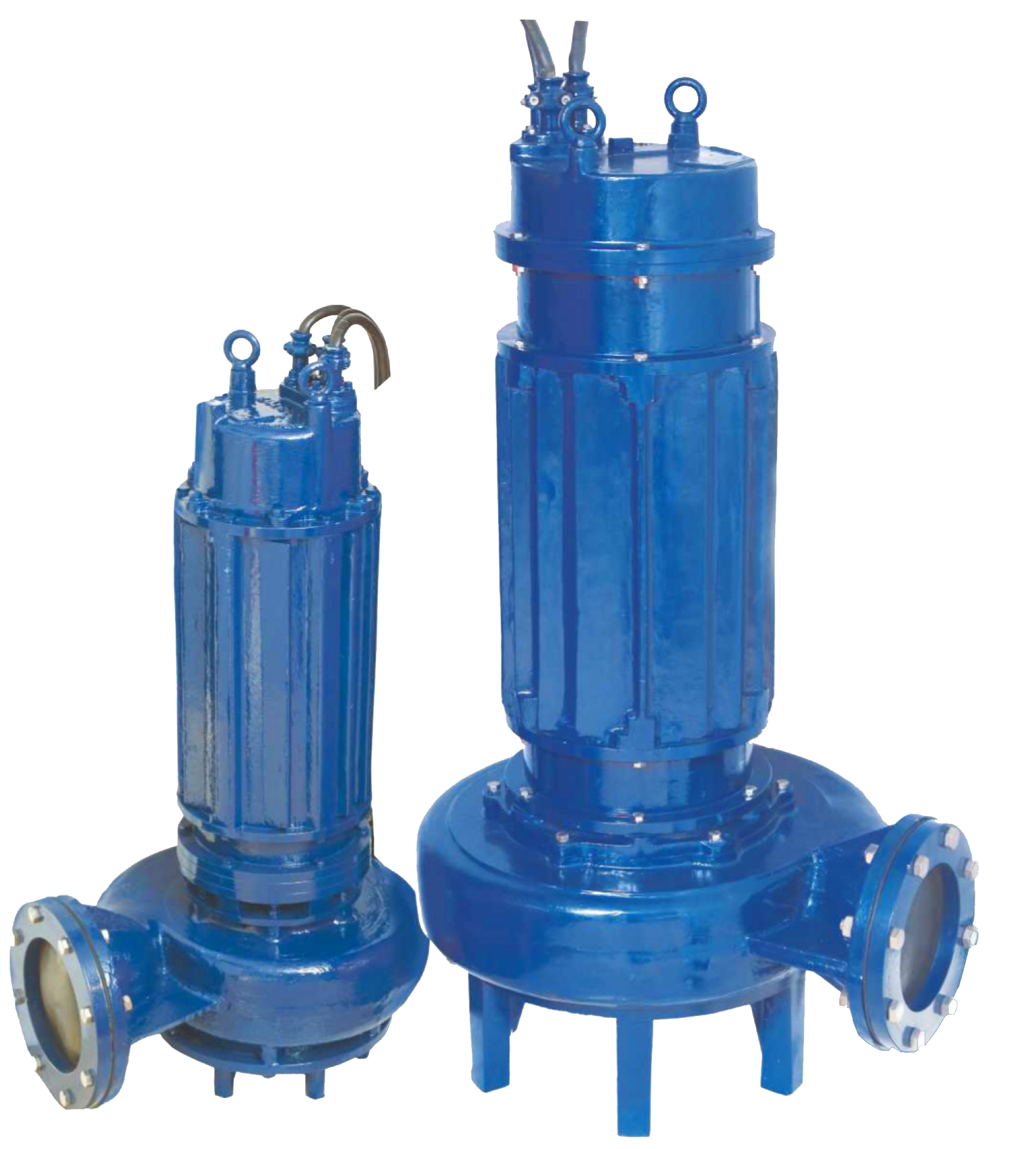

Non-clog Series Pumps
Features
Impeller -Wear resistant SS impeller with wide passages that can pass solids up to 100mm.
Motor – Highly efficient dry motor with built -in protection against temperature rise.motor capable to withstand wide voltage fluctuations.
Shaft – Extra heavy duty SS Shaft.
Mechanical Seals -Dual Mechanical seal fitted in independent chambers, not exposed to pumpage liquid and devoide of discharge pressure.
Bearing– Heavy duty ball bearing used at top and bottom ends to balance adverse load.
Seal Guard Protection-Additional protection for machanical seal by seal guard.
Cable Sealing – Special leak proof cable sealing arrangement,to avoid ingress of water through cable.no need to open motor for changing cable.
Treashguard -Special arrangement to avoid builtup of solids above the impeller.
Applications
  • Municipal Waste, Raw & Un-Screened Sewage
  • Industrial Wastes & Effluents
  • Pharmaceutical, Textile & Tanning Plants
  • Municipal Sewer pumps
  • Effluent Treatment And Sewage Treatment Plants
  • Ro Reject / Desalination Projects
  • Chemical Handling Plants & Many More….
  • Private Pumping / Sewage Stations.
Non-clog Series Pumps
 Tech. Specifications*
Rating : Up to 300 HP
RPM : 1450 /960
Frequency : 50 HZ
Supply : Three phase- 415 V
Starting : DOL
Motor : Wet type / Dry type
Process Data
Liquid temperature : Max 40° C
Liquid Density : Max 1100 kg/m3
Suitable for liquid pH : 6 to 8
Stainer Hole Size : Up to 100 mm
Materials*
Impeller : CA – 15, CF8, CF8M,various grades of Cl
Shaft : AISI-410, SS-304, SS-316
Difusser : Various grades of CI/ SS
Wear plate : Various grades of CI/ SS
Mech. Seal Sic  v/s Sic, Tc  v/s Tc
Non-clog Series Pumps
Pump Model HP/KW RPM OUTLET / DN SIZE SOLID PASSAGE MINIMUM SUBMERGENCE (Approx.) WIDTH / OUTER DIA (Approx.) HEIGHT (Approx.) Net Weight (In Kg) (Approx.)
4SR-03G/40+ 3.0/2.2 1440 100 40 720 405 875 125
4SC-03G/80+ 3.0/2.2 1440 100 80 720 405 875 125
4SR-03EH/18+ 3.0/2.2 1440 50 18 600 460 750 115
4SR-05EH/18+ 5.0/3.7 1440 50 18 600 460 750 120
4SR-05G/40+ 5.0/3.7 1440 100 40 720 405 875 130
4SC-05G/80+ 5.0/3.7 1440 100 80 720 405 875 130
4SR-07EH/18+ 7.5/5.5 1450 50 18 600 460 800 180
4SR-07I/40+ 7.5/5.5 1450 100 40 760 465 955 205
4SC-07I/100+ 7.5/5.5 1450 100 100 760 465 955 205
4SP-07IL/20+ 7.5/5.5 1450 100 20 690 480 890 177
4SP-07ML/20+ 7.5/5.5 1450 150 20 690 520 895 187
4SP-10ML/20+ 10/7.5 1450 150 20 690 520 895 197

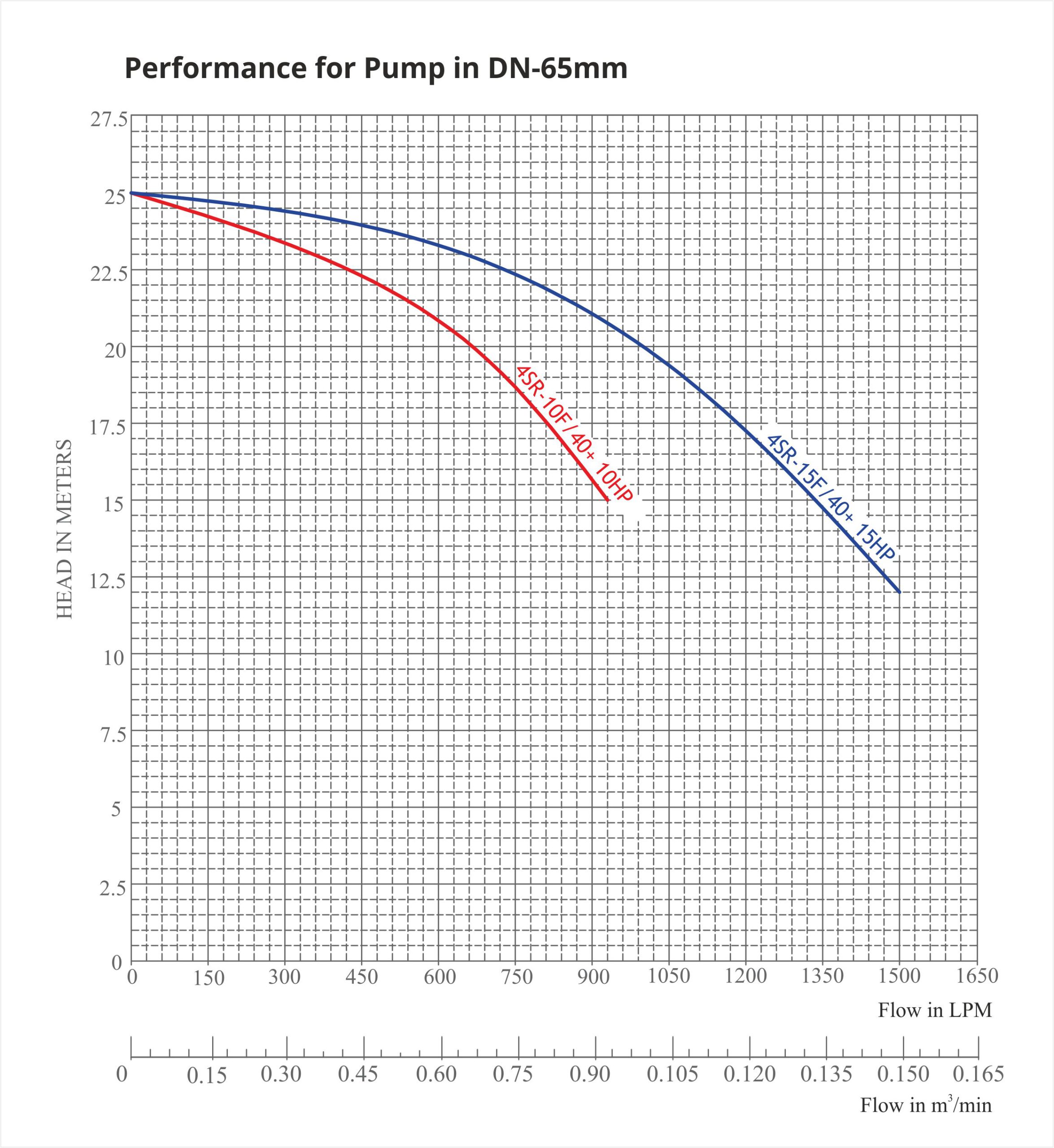

4SR-10F/40+ 10/7.5 1450 65 40 610 480 810 137
4SR-10I/40+ 10/7.5 1450 100 40 760 465 955 242
4SC-10I/100+ 10/7.5 1450 100 100 760 465 955 242
4SC-10M/100+ 10/7.5 1450 150 100 740 590 945 242
4SR-15K/50+ 15/11 1450 100 50 780 580 990 267
4SC-15I/100+ 15/11 1450 100 100 820 465 1025 267
4SR-15F/40+ 15/11 1450 65 40 675 480 880 220
4SR-20K/50+ 20/15 1460 100 50 860 580 1065 292
4SR-20J/35+ 20/15 1460 100 35 850 635 1055 267
4SR-20M/100+ 20/15 1460 150 100 870 590 1080 295
4SR-25J/35+ 25/18.5 1460 100 35 850 635 1055 295
4SR-25K/60+ 25/18.5 1460 100 60 870 580 1075 295
4SR-25M/100+ 25/18.5 1460 150 100 870 590 1080 295
4SR-25N/100+ 25/18.5 1460 200 100 910 670 1120 295
4SR-30J/20+ 30/22 1460 100 20 935 635 1140 320
4SR-30K/60+ 30/22 1460 100 60 955 580 1160 320
4SR-30M/100+ 30/22 1460 150 100 960 590 1165 320
4SR-30N/100+ 30/22 1460 200 100 1000 670 1205 330
4SR-40N/100+ 40/30 1460 200 100 1000 670 1205 410
4SR-40M/50+ 40/30 1460 150 50 870 730 1075 400
4SR-50M/50+ 50/37 1460 150 50 990 730 1375 658
4SR-50N/100+ 50/37 1460 200 100 1015 670 1505 510
4SR-50’O’/100+ 50/37 1460 200 100 1230 780 1615 510
4SR-60’OH’/50+ 60/45 1460 200 50 1225 785 1615 590
4SR-75’OH’/50+ 75/55 1460 200 50 1225 785 1615 590
4SR-75MM/16+ 75/55 1460 150 16 1175 760 1565 650
4SR-75MM/20+ 75/55 1460 150 20 990 710 1395 700
4SR-100’OH’/100+ 100/75 1460 200 100 1280 875 1700 900
4SR-120NN/25+ 120/90 1460 200 25 1400 820 1815 850
4SR-150’OO’/100+ 150/110 1460 200 100 1430 875 1850 1100
Note: All dimensions are in millimeter (mm).
Non-clog Series Pumps
Options
  • Option of pump with dry motor as well as oil filled motor.
  • Option of pumps with inbuilt agitator arrangement.
  • Pumps can be offered for 60 Hz.
  • Option of pumps with cooling jacket.
  • Option of pumps with Spiral cutting plate.
  • Guiderail / Fastout arrangement Upto 20 mtr pit depth.
  • Veriety of MOCs to choose from.
Recommendations
  • Always flush the pump with clean water after use.
  • In case of maintenance always use genuine spares.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.

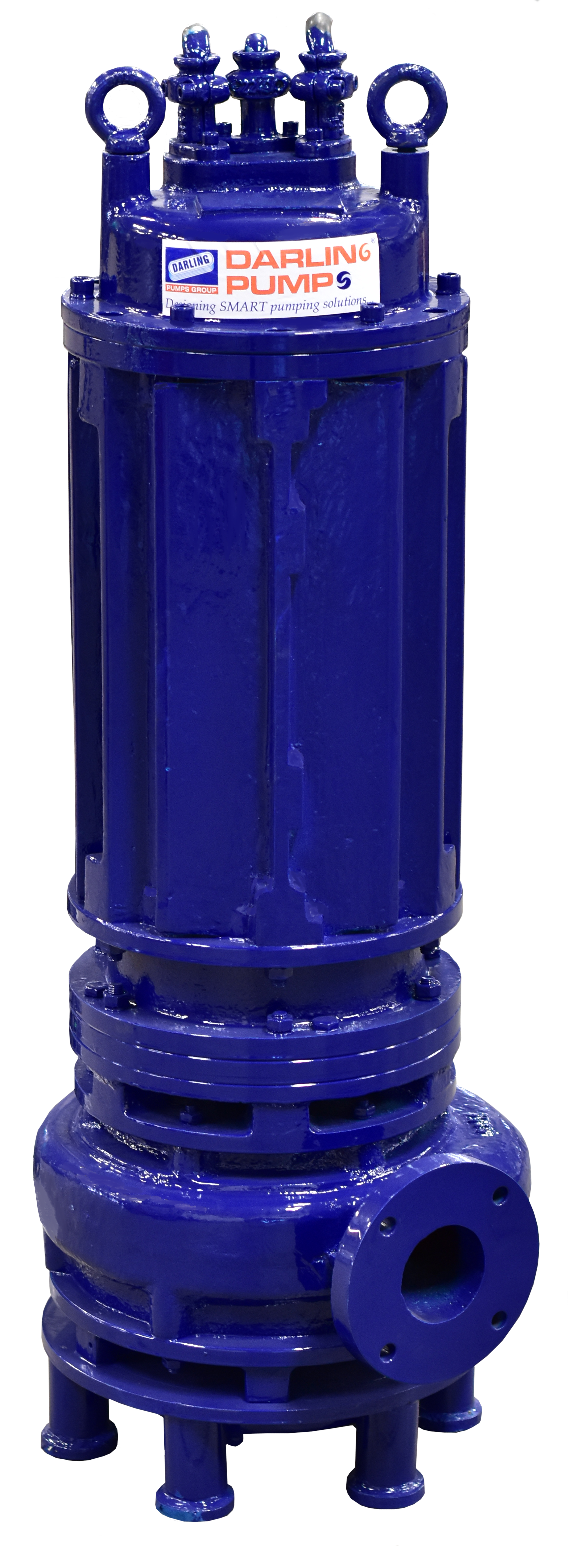

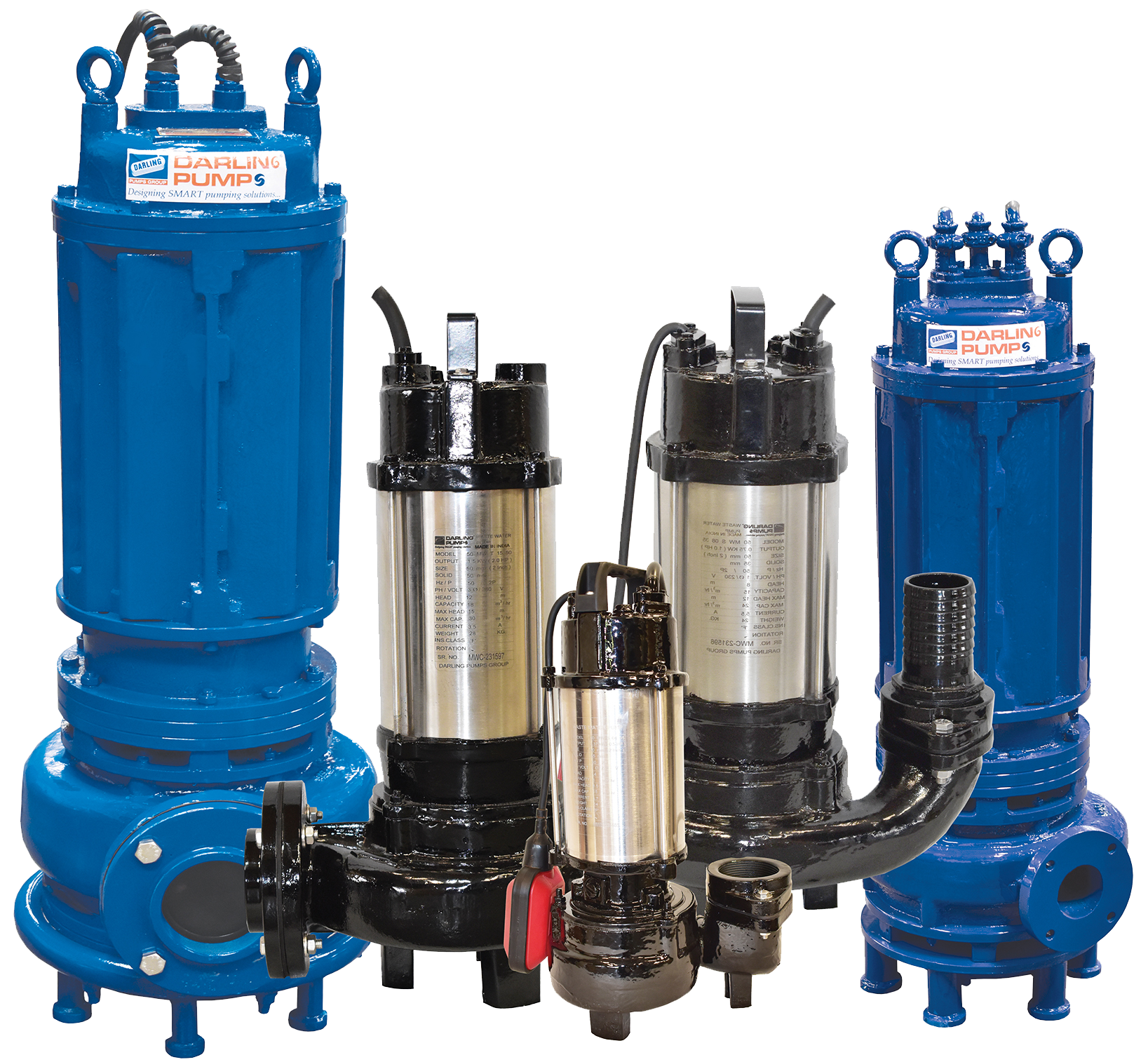

Waste Water Series Pumps
Features
Impeller -Choice of impeller-Vortex,Radial ,Channel to cater different kind of soilid handling applications.Suitable for handling solids from MM to 50 mm
Motor – Highly efficient dry as well as wet motors with built- in protections against temperature rise.motor capable to withstand wide voltage.
Shaft – heavy duty Shaft to avoid feflection while pumping solids.
Mechanical Seals -Mechanical seals fitted in independent chambers, not exposedto pumpage liquid and devoide of discharge pressure.
Bearing– Heavy duty ball bearing used at top and bottom ends to balance adverse load.
Cable Sealing – Special leak proof cable sealing arrangement,to avoid ingress of water through cable.no need to open motor for changing cable.cable.
Float switch – Pumps up to 2HP can also be provided in single phase and with built -in Float arrangement.
Applications
  • CAR Parking areas
  • hotel & hospitals.
  • Pharmaceutical plants
  • Treated water from ETP/STP
  • CAR Parking areas
  • Cable Trench pits
  • Packeged sewage system.

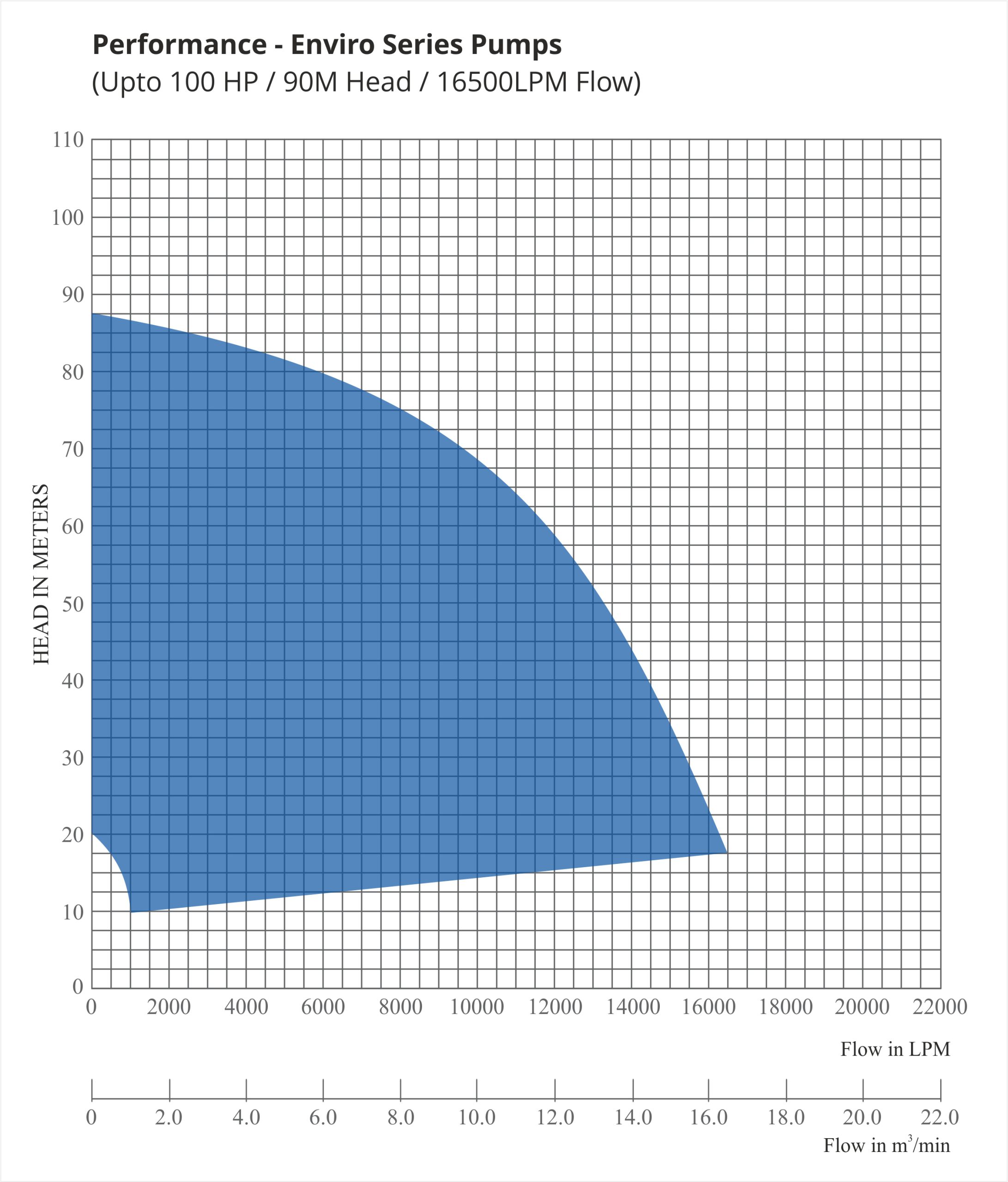

Waste Water Series Pumps
Tech. Specifications*
Rating : Up to 100 HP
RPM : 2900
Frequency : 50 HZ
Supply : Three phase- 415 V
Starting : DOL
Motor : Wet type / Dry type
Process Data
Liquid temperature : Max 40° C
Liquid Density : Max 1100 kg/m3
Suitable for liquid pH : 6 to 8
Stainer Hole Size : Up to 50 mm
Materials*
Impeller : CA – 15, CF8, CF8M,various grades of Cl
Shaft : AISI-410, SS-304, SS-316
Difusser : Various grades of CI/ SS
Wear plate : Various grades of CI/ SS
Mech. Seal Sic v/s Sic, Tc v/s Tc
Waste Water Series Pumps
Pump Model HP/KW Phase RPM OUTLET / DN SIZE SOLID PASSAGE MINIMUM SUBMERGENCE (Approx.) WIDTH / OUTER DIA (Approx.) HEIGHT (Approx.) Net Weight (In Kg) (Approx.)
50MW S 08 35 1.0/0.75 Single 2900 50 35 335 270 450 24.5
50MW T 08 35 1.0/0.75 Three 2900 50 35 335 270 450 24.5
50MW S 08 50 1.0/0.75 Single 2900 50 50 360 240 480 25.5
50MW T 08 50 1.0/0.75 Three 2900 50 50 360 240 480 25.5
50MW S 11 35 1.5/1.1 Single 2900 50 35 335 270 450 25
50MW T 11 35 1.5/1.1 Three 2900 50 35 335 270 450 25
50MW S 11 50 1.5/1.1 Single 2900 50 50 360 240 480 26
50MW T 11 50 1.5/1.1 Three 2900 50 50 360 240 480 26
50MW S 15 35 2.0/1.5 Single 2900 50 35 335 270 470 26
50MW T 15 35 2.0/1.5 Three 2900 50 35 335 270 470 26
50MW S 15 50 2.0/1.5 Single 2900 50 50 380 240 495 28
50MW T 15 50 2.0/1.5 Three 2900 50 50 380 240 495 28
WP-03D/35 3.0/2.2 Three 2820 80 35 500 335 600 63
WP-05D/35 5.0/3.7 Three 2830 80 35 500 335 600 67
WR-03LM/20 3.0/2.2 Three 2820 50 20 490 250 585 55
WV-03LL/40 3.0/2.2 Three 2820 50 40 470 340 560 52
WV-05LL/40 5.0/3.7 Three 2830 50 40 470 340 560 57
WP-07E/40 7.5/5.5 Three 2850 100 40 535 415 630 120
WP-10E/40 10/7.5 Three 2850 100 40 585 415 680 140
WP-10D/40 10/7.5 Three 2850 80 40 585 335 675 125
WP-12E/40 12.5/9.3 Three 2860 100 40 585 415 680 145
WP-15E/17 15/11 Three 2870 100 17 600 475 725 170
WP-20E/20 20/15 Three 2880 100 20 600 475 820 190
WP-20H/40 20/15 Three 2930 80 40 910 430 1110 270
WP-25H/40 25/18.5 Three 2930 80 40 910 430 1110 300
WP-25EE/10 25/18.5 Three 2890 100 10 775 420 1090 253
WP-30H/40 30/22 Three 2930 80 40 910 430 1110 310
WP-35EE/10 35/26.1 Three 2890 100 10 805 420 1120 260
WP-35H/40 35/26.1 Three 2935 80 40 910 430 1110 330
WP-40H/40 40/30 Three 2955 80 40 1010 430 1210 410
WP-50H/40 50/37 Three 2960 80 40 1010 430 1210 510
WR-50HH/20 50/37 Three 2900 80 20 880 510 995 375
WP-60H/40 60/45 Three 2960 80 40 1180 430 1440 565
WP-75H/40 75/55 Three 2965 80 40 1180 430 1440 650
WP-100H/40 100/75 Three 2965 80 40 1240 430 1500 750
4WC-104 10/7.5 Three 1455 100 NA 850 480 1055 235
4WC-154 15/11 Three 1455 100 NA 950 480 1155 268
4WC-204 20/15 Three 1455 100 NA 950 480 1155 275
Waste Water Series Pumps
Options
  • Option of pumps with cooling jacket.
  • Option of pumps with inbuilt Cutter/Spiral cutting plate.
  • Guiderail / Fastout arrangement Upto 20 mtr pit depth.
  • Veriety of MOCs to choose from.
  • Choice of casing and impeller to suit specific solid handling applications.
Recommendations
  • Always flush the pump with clean water after use.
  • In case of maintenance always use genuine spares.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.

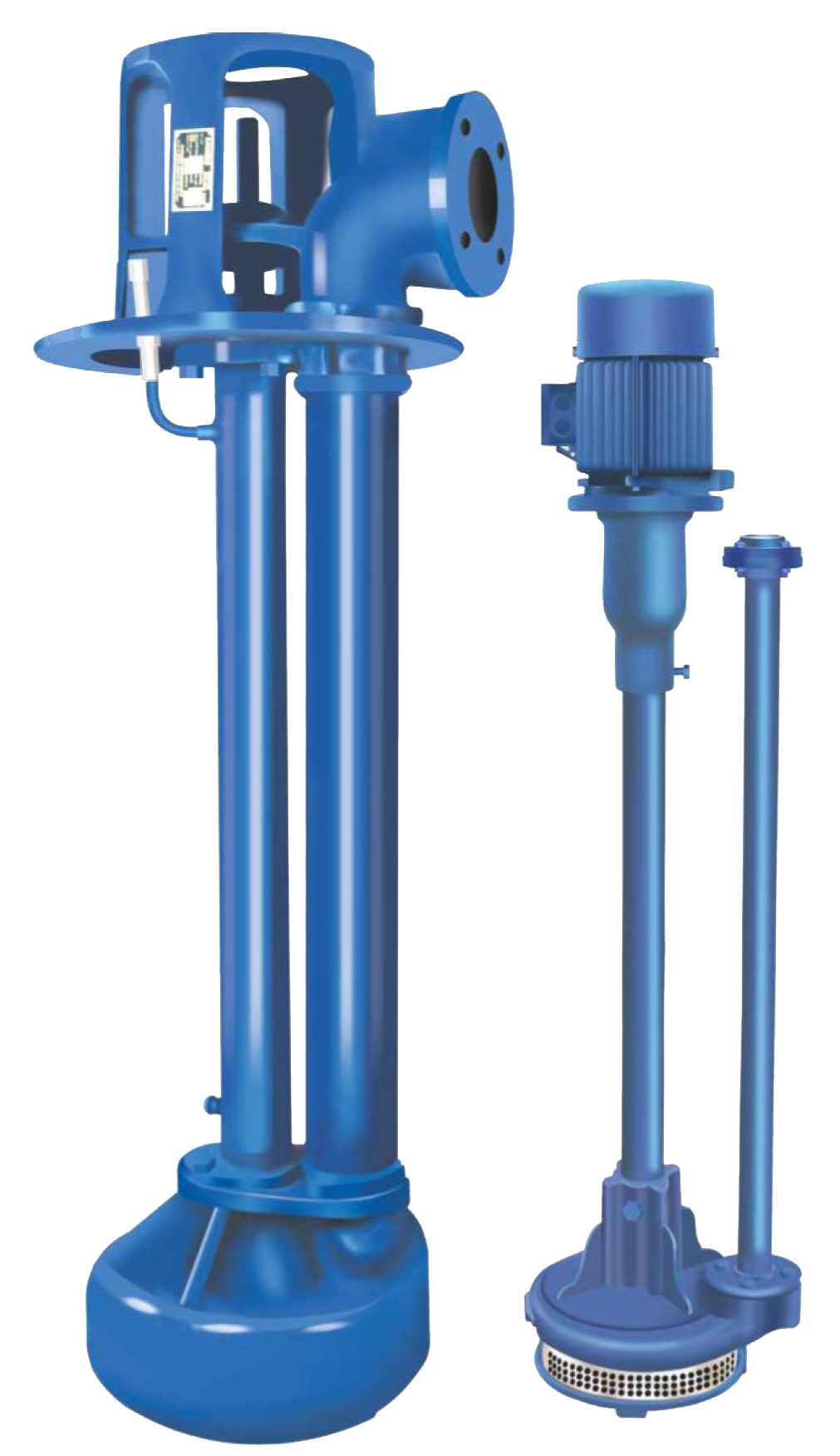

Vertical Wet Pit Series Pumps
Features
Impeller -Specially deisgned impeller with wide passages that can pass solids up to 63 mm.
Motor – Vertical Flange Mounted TEFC motor. Can be FLP or Non FLP type
Shaft – Extra heavy duty SS Shaft, capablee to withstand adverse load
Bearing– Heavy duty grease lubricated ball bearing used at Top, Bottom & Intermidiate end of the shaft
Column Length – Pumps can be designed for column length of minimum 0.5 m to 6 mtrs
Casing – Specially designed casing assisting in free flow of liquids & solids, minimising the adverse load on pump
Applications
  • Municipal Waste, Raw & Un-Screened Sewage
  • Industrial Wastes & Effluents
  • Pharmaceutical, Textile & Tanning Plants
  • Municipal Sewer pumps
  • Effluent Treatment And Sewage Treatment Plants
  • Ro Reject / Desalination Projects
  • Chemical Handling Plants & Many More….
Vertical Wet Pit Series Pumps
 Tech. Specifications*
Rating : Up to 100 HP
RPM : 1450 / 2900
Frequency : 50 HZ
Supply : Three phase- 415 V
Motor : FLP / Non FLP
Process Data
Liquid temperature : Max 40° C
Liquid Density : Max 1100 kg/m3
Suitable for liquid pH : 6 to 8
Stainer Hole Size : Up to 63 mm
Materials*
Impeller : Various grades of CI/ SS
Shaft : AISI-410, SS-304, SS-316
Casing : Various grades of CI/ SS
Column Pipe : Various grades of MS/ SS
Discharge  Pipe Various grades of MS/ SS
Vertical Wet Pit Series Pumps
Pump Model HP/KW RPM OUTLET / DN SIZE SOLID PASSAGE MINIMUM SUBMERGENCE (Approx.) WIDTH OF PUMP Height of the Pump Net Weight (In Kg) (Approx.)
ES-50 5.0/3.7 1470 50 SHALL VARY AS PER SITE CONDITIONS SHALL VARY AS PER SITE CONDITIONS 550 SHALL VARY AS PER SITE CONDITIONS SHALL VARY AS PER SITE CONDITIONS
ES-50 7.5/5.5 1470 50 550
ES-50 10/7.5 1470 50 550
ES-65 7.5/5.5 1470 65 615
ES-65 10/7.5 1470 65 615
ES-65 12.5/9.3 1470 65 615
ES-65 15/11 1470 65 615
ES-65H 20/15 1470 65 715
ES-65H 25/18.5 1470 65 715
ES-65H 30/22 1470 65 715
ES-80 10/7.5 1470 80 615
ES-80 12.5/9.3 1470 80 615
ES-80H 15/11 1470 80 685
ES-80H 20/15 1470 80 685
ES-100J 20/15 1470 100 835
ES-100J 25/18.5 1470 100 835
ES-100J 30/22 1470 100 835
ES-100J 35/26.1 1470 100 835
ES-100J 40/30 1470 100 835
ES-100JH 50/37 1470 100 870
ES-100JH 60/45 1470 100 870
ES-100JH 75/55 1470 100 870
ES-150M 50/37 1470 150 1030
ES-150M 60/45 1470 150 1030
ES-150M 75/55 1470 150 1030
ES-150M 100/75 1470 150 1030
ES-150MH 75/55 1470 150 1060
ES-150MH 100/75 1470 150 1060
ES-200’OO’ 75/55 1470 200 1250
ES-200’OO’ 100/75 1470 200 1250
Note: All dimensions are in millimeter (mm).
Vertical Wet Pit Series Pumps
Optoions
  • Pumps can be offerred for liquid temparature of 90◦C
  • Pump can be offerred for Hazardos areas as well
  • Pumps can be offered for 60 Hz.
  • Veriety of MOCs to choose from.
Recommendations
  • Always flush the pump with clean water after use.
  • In case of maintenance always use genuine spares.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.

Industries & Clientele

Watch Video

Non Clog and Waste Water Pumps

Non-clog submersible pumps are ones which have an open or semi-open impeller that allows clogs, rags or suspended particles to be pumped along with the fluid. A cutter is required before the impeller vane to shred the clogs, rags or other suspended particles.

Non-clog Pumps are used for a variety of applications such as Raw & unscreened Sewage, Industrial wastes & effluents, Municipal Sewer Lines, Tailing ponds, Sewage treatment plants, Effluent Treatment Plants, Pharmaceutical & textile units & many more similar applications.

Your submersible pump may not be working owing to various reasons. Please check the manufacturers troubleshooting guide, consult a trained mechanic or a customer service representative. The troubleshooting guide is available in Operation & Maintenance Manual.

The minimum level of submergence for a submersible pump depends on the type of service and the load the motor is subjected to. For continuous service, the pump must be completely submerged in the pumped fluid; for intermittent service, the pump also works when partially submerged (up to its minimum submergence level) but it must be allowed to rest for reasonable periods to prevent the motor from overheating.
Some of our models are fitted with a special cooling casing so they can operate continuously even when partially immersed.

During operation, a pump motor can face overload. Knowing the most frequent causes of overload can help prevent malfunctions. The main reasons for overload can be: the impeller is blocked by foreign particles, the mechanical parts block due to excessive stopping times, the density of the liquid is greater than the maximum permitted density etc.. If you have any doubts, contact your dealer or specialized Darling Pump maintenance technician.

top
× How can I help you?
