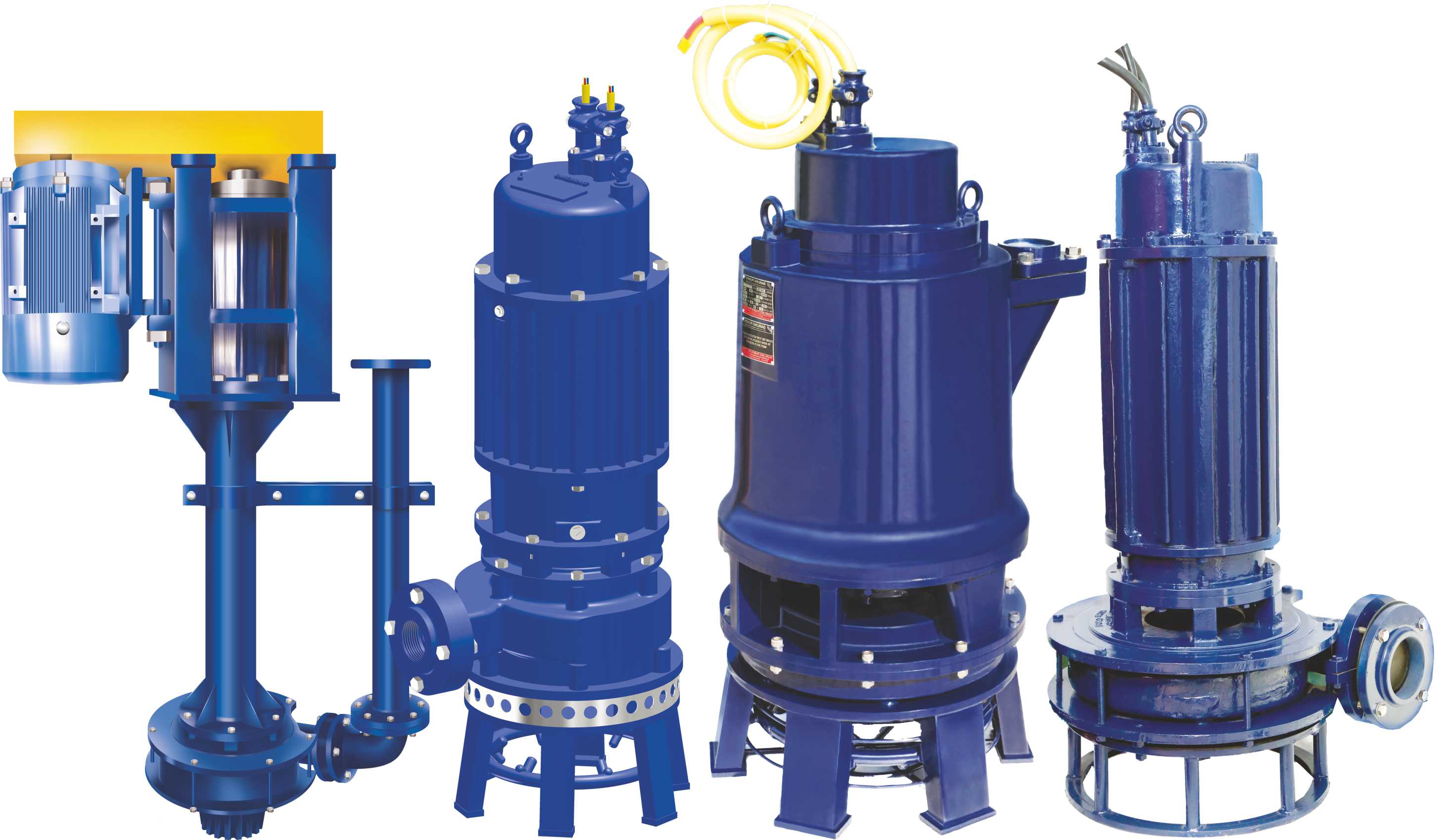

Slurry Pumps

Slurry is a mixture of solids and liquid, generally water. The particles can be both abrasive & nonabrasive, although abrasive particles are very much common. The purpose to move slurry can be transporting as much solids particles as possible, hydraulically, along with the given liquid. There are many factors to be considered while selecting a slurry pump like; Particle size- Specific gravity of solids, Specific gravity of liquid, Concentration of slurry, Shape of particles etc. Slurry can be further classified in to two types – 1. Non – Settling Slurry & 2. Settling Slurry.

Download Brochure

Download Brochure

Download Brochure

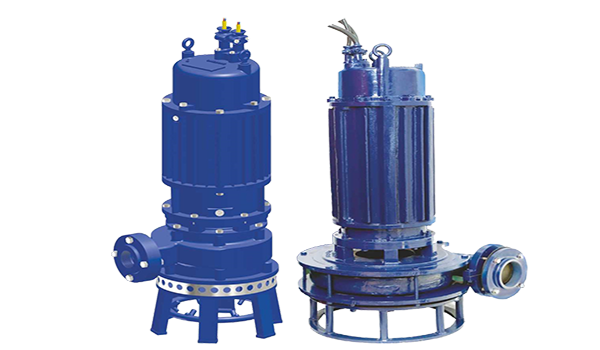

Dredger Series Pump
Features
Impeller – Abrasive resistant Semi open type impeller with hydraulically balanced axial thrust.
Shaft– Fully covered heavy duty shaft not exposed to pumpage liquid.
Motor – Highly efficient slow speed motors with built-in protection against temperature rise.
Wearplate – Abrasive resistant Adjustable and replaceable wear plate to restore clearances for optimum efficiency.
Mechanical Seals – Dual mechanical seals Fitted in independent chamber devoid of discharge pressure,ensuring better seal life . Additionaly fitted with seal sensores detect any kind of water ingress.
Agitator – Abrasive resistant agitators comes in as a Built-in arrangement.
Jetting– In built provision for waterjet arrangement for desettling of slurries.
Replacable Wear parts – All wear parts are independantly replacable which bring down running /maintenance coast drastically.
Applications
  • High Abrasive Slurries
  • Mill Scale, Iron Ore & Pallet Slurries
  • Mineral Ore Processing Units
  • Ash & Coal Handling Plants
  • Granite & Marble Slurry
  • Industrial Waste Removal
  • Jack Well / Intake well cleaning
  • Removal of Sand deposition at dam galleries & penstock tunnels
  • Removal of Sand deposition at dam galleries & penstock tunnels
Dredger Series Pump
Tech. Specifications*
Rating : Up to 200 HP
RPM : 1450 /960 (nominal)
Frequency : 50 HZ
Supply : Three phase- 415 V
Starting : DOL
Motor : Wet type / Dry type
Process Data
Liquid temperature : Max 40° C
Liquid Density : 2.8 gm/cc
Solid Passage : Up to 32 mm
Solid Concentration : 65% by weight
Materials*
Impeller : High Crome, Ni-Hard,hardned SS
Shaft : SS
Difusser : Various grades of CI/ AL/ SS
Casing : Ni-Ci,High Crome, Hi-Hard
Wear plate : High Crome, Ni-Hard
Agitator : High Crome, Ni-Hard
Mech. Seal : Sic v/s Sic, Tc v/s Tc
Dredger Series Pump
Pump Model HP/KW RPM OUTLET / DN SIZE SOLID PASSAGE MINIMUM SUBMERGENCE (Approx.) WIDTH (Approx.) HEIGHT (Approx.) Net Weight (In Kg) (Approx.)
4DRR-05F/16+ 5.0/3.7 1450 65 16 740 445 895 150
4DRR-05G/25+ 5.0/3.7 100 25 830 415 985 155
4DRR-05H/16+ 5.0/3.7 80 16 800 470 950 155
4DRR-07F/16+ 7.5/5.5 65 16 725 445 925 205
4DRR-07G/25+ 7.5/5.5 100 25 825 415 1020 205
4DRR-07H/16+ 7.5/5.5 80 16 780 465 985 205
4DRR-10F/16+ 10/7.5 65 16 725 445 925 215
4DRR-10H/20+ 10/7.5 80 20 780 465 985 215
4DRR-10I/25+ 10/7.5 100 25 830 475 1030 230
4DRR-15H/16+ 15/11 80 16 850 465 1055 290
4DRR-15I/25+ 15/11 100 25 890 475 1095 300
4DRR-20J/16+ 20/15 100 16 935 650 1140 370

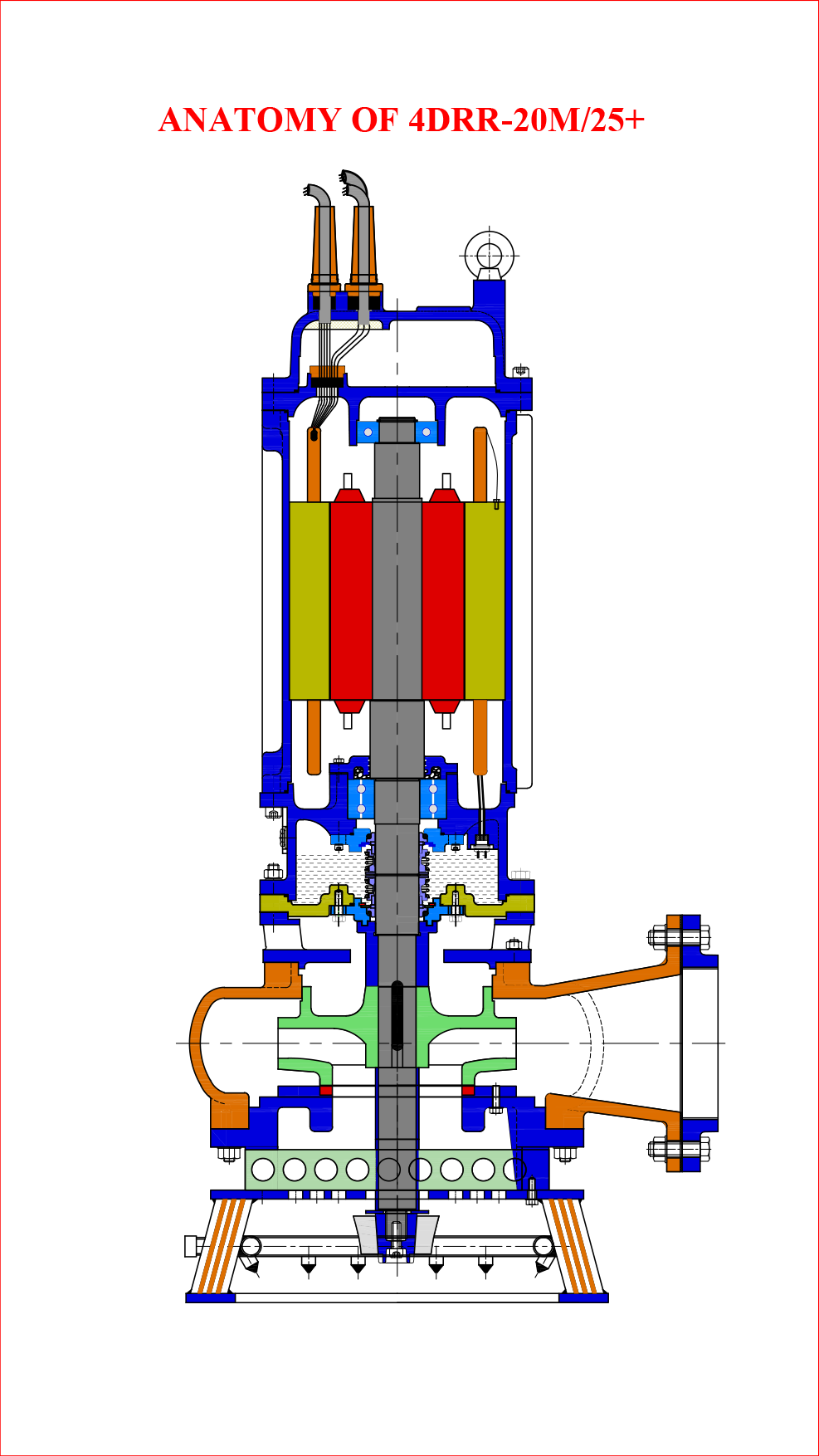

4DRR-20M/25+ 20/15 150 25 965 600 1175 370
4DRR-25J/20+ 25/18.5 100 20 935 650 1145 380
4DRR-25M/25+ 25/18.5 150 25 965 600 1175 380
4DRR-30J/20+ 30/22 100 20 1020 650 1230 400
4DRR-30M/25+ 30/22 150 25 1050 600 1260 400
4DRR-40J/20+ 40/30 100 20 1050 650 1255 420
4DRR-40M/25+ 40/30 150 25 1065 600 1270 420
4DRR-50J/20+ 50/37 100 20 1170 650 1170 680
4DRR-50N/25+ 50/37 200 25 1220 670 1610 680
4DRR-100’MM’/25+ 100/75 150 25 1290 755 1705 900
4DRR-100’O’/25+ 100/75 200 25 1430 800 1850 776
Note: All dimensions are in millimeter (mm).
Dredger Series Pumps
Options
  • We offer complete slurry pumping solution for all kind of slurries.
  • All slurry pumps are customised to Cater specific needs of users.
  • Specialised range of slurry pumps for pumping deep sea slurries.
  • Can be offered for pumping high temp. Slurries up to to 90 °C.
  • Option of pontoon mounted slurry pumps also available.
  • Option of twin volute casing.
  • Customised jetting arrangement based on weight and concetration of slurry.
  • Customiseble pump stand for maximum slurry pumping
  • Pumps can be offered in 60 Hz on request.
Recommendations
  • Always flush the pump with clean Water after use.
  • In case of maintenance always use genuine spares.
  • Use Slurry specific slurry hoses for effective slurry handling.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.

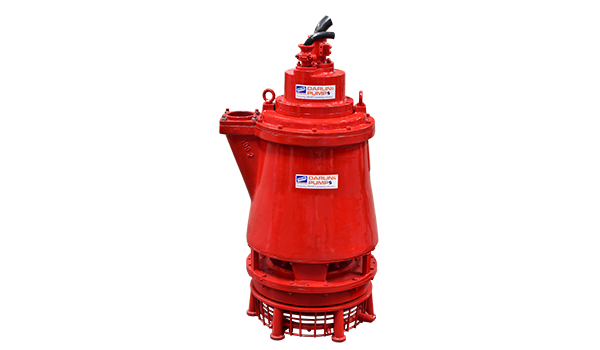

4HD Series Pumps
Features
Impeller – Abrasive resistant semi open type impeller with back vane for hydraulically balanced axial thrust.
Shaft – Fully covered Heavy duty shaft not exposed to pumpage liquid.
Volute – Replaceable twin volute type diffuser.
Wearplate – Abrasive resistant Adjustable and replaceable wear plate to restore clearances for optimum efficiency.
Mechanical Seals – Dual mechanical seals Fitted in independent chamber devoid of discharge pressure, ensuring better seal life . Additionally fitted with seal sensors detect any kind of water ingress.
Agitator – Abrasive resistant agitator comes in as a built- in arrangement.
Jetting– In built provision for waterjet arrangement for desettling of slurries
Replaceable Wear parts – All wear parts are independently replaceable which bring down running /maintenance coast drastically.
Unique jacketed Design -Ensures maximum pumping even in small pits and safeguards pump against dry running.
Applications
  • Ideal for highly abrasive slurries
  • Mill Scale, Iron Ore & Pallet Slurries
  • Mineral Ore Processing Units
  • Ash & Coal Handling Plants
  • Granite & Marble Slurry
  • Industrial Waste Removal
  • Jack Well / Intake well cleaning
  • Removal of Sand deposition at dam galleries & penstock tunnels
4HD Series Pumps
Tech. Specifications*
Rating : Up to 200 HP
RPM : 1450 (nominal)
Frequency : 50 HZ
Supply : Three phase- 415 V
Motor : Wet type / Dry type
Process Data
Liquid temperature : Max 90° C
Liquid Density : 2.8 gm/cc
Solid Passage : Up to 32 mm
Solid Concentration : 65% by weight
Materials*
Impeller : High Crome, Ni-Hard,hardned SS
Shaft : SS 431
Volute : Hardened SS,High Chrome
Wear plate : High Crome, Ni-Hard
Agitator : High Crome, Ni-Hard
Mech. Seal : Sic v/s Sic, Tc v/s Tc
4HD Series Pumps
Pump Model HP/KW RPM OUTLET / DN SIZE SOLID PASSAGE MINIMUM SUBMERGENCE (Approx.) WIDTH (Approx.) HEIGHT (Approx.) Net Weight (In Kg) (Approx.)
4HD-153 15/11 1450 80 25 225 685 1070 440
4HD-203 20/15 80 25 225 685 1070 446
4HD-253 25/18.5 80 25 225 685 1070 455
4HD-304 30/22 100 32 225 705 1225 515
4HD-404 40/30 100 32 225 705 1225 530
4HD Series Pumps
Options
  • We offer complete slurry pumping solution for all kind of slurries.
  • All slurry pumps are customised to Cater specific needs of users.
  • Specialised range of slurry pumps for pumping deep sea slurries.
  • Can be offered for pumping high temp. Slurries up to to 90 °C.
  • Option of pontoon mounted slurry pumps also available.
  • Option of twin volute casing.
  • Customised jetting arrangement based on weight and concetration of slurry.
  • Customisable pump stand for maximum slurry pumping.
  • Pumps can be offered in 60 Hz on request.
Recommendations
  • Always flush the pump with clean Water after use.
  • In case of maintenance always use genuine spares.
  • Use Slurry specific slurry hoses for effective slurry handling.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.

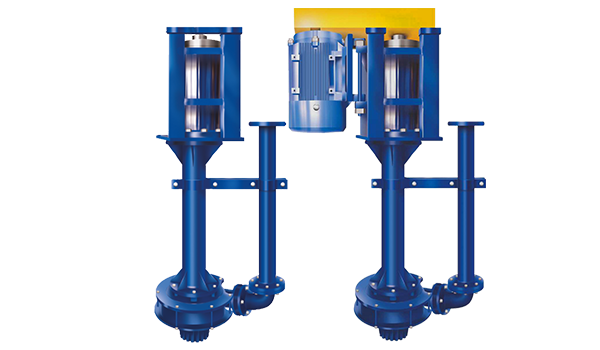

Cantilever Pump
Features
Impeller – Abrasive resistant semi open type impeller with back vane for hydraulically balanced axial thrust.
Shaft – Fully covered Heavy duty shaft not exposed to pumpage liquid.
Motor– Choice of direct drive and belt driven motors.
Bearing – Anti-friction, grease lubricated bearings totally protected against contamination. No Submerged bearings, stuffing box or shaft seal. No flushing through service water pump.
Wearplate – abrasive resistant adjustable wear plate to restore clearances for optimum efficiency.
Agitator – Abrasive resistant agitator comes in optional arrangement.
Replacable Wear parts – All wear parts are independantly replacable bringing down the running /maintenance coast drastically.
Applications
  • High Abrasive Slurries
  • Mill Scale, Iron Ore & Pallet Slurries
  • Mineral Ore Processing Units
  • Ash & Coal Handling Plants
  • Granite & Marble Slurry
  • Industrial Waste Removal
  • Jack Well / Intake well cleaning
  • Removal of Sand deposition at dam galleries & penstock tunnels
Cantilever Series Pump
Tech. Specifications*
Rating : Up to 120 HP
RPM : 1450 /960 (nominal)
Frequency : 50 HZ
Supply : Three phase- 415 V
Motor : Flange Mounted / foot Mounted
Process Data
Liquid temperature : Max 90° C
Liquid Density : 2.8 gm/cc
Solid Passage : Up to 25 mm
Solid Concentration : 65% by weight
Materials*
Impeller : High Crome, Ni-Hard,hardned SS
Shaft : SS 431
Volute : Hardened SS,High Chrome
Wear plate : High Crome, Ni-Hard
Agitator : High Crome, Ni-Hard
Mech. Seal : Sic v/s Sic, Tc v/s Tc

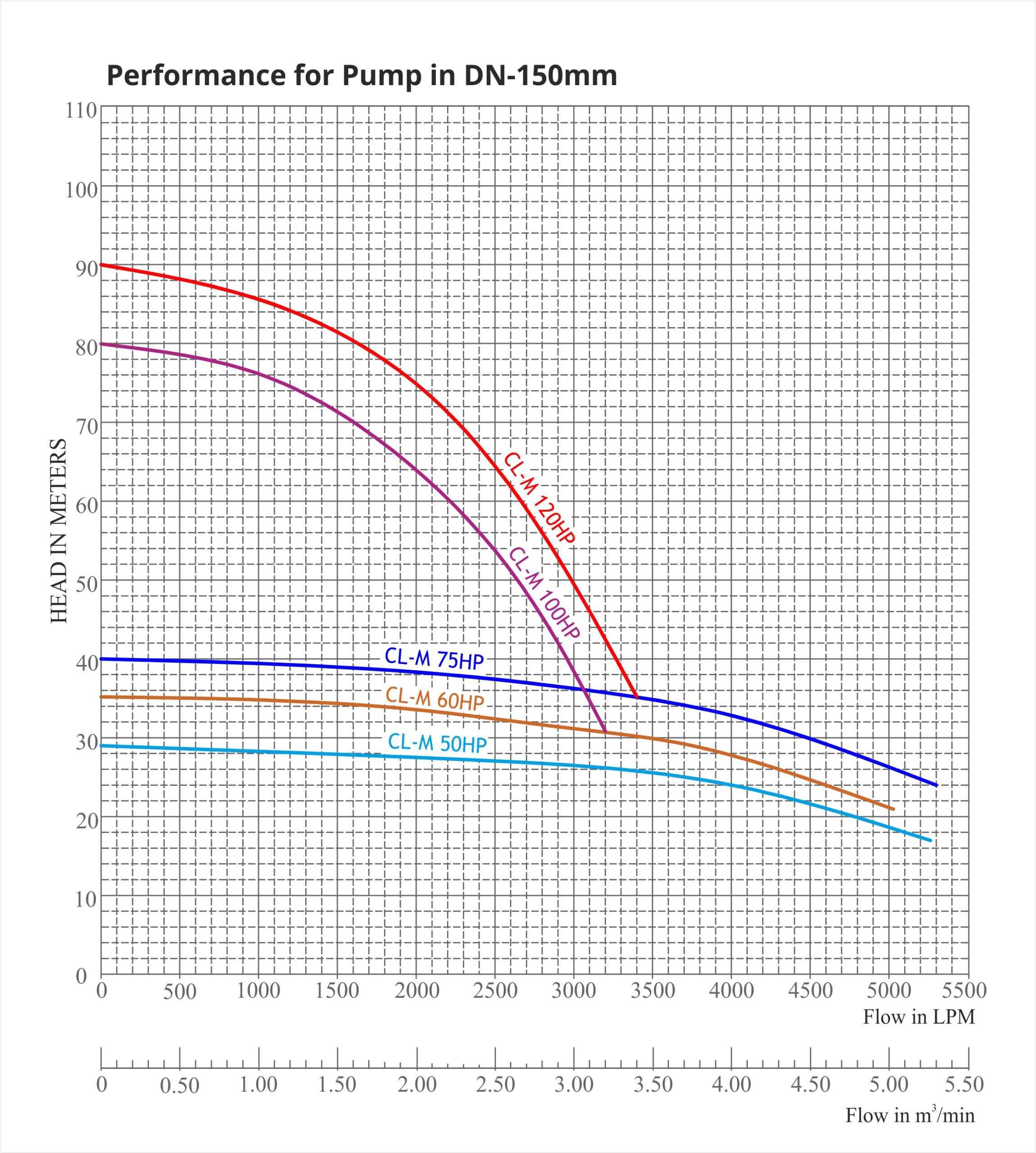

Cantilever Series Pump
Pump Model HP/KW OUTLET / DN SIZE MINIMUM SUBMERGENCE (Approx.) Solid Passage MAXIMUM WIDTH OF PUMP WIDTH OF CASING MAXIMUM COLUMN LENGTH OF PUMP LENGTH OF TAIL PIPE Net Weight (In Kg) (Approx.)
CL-B 7.5/5.5 50
SHALL VARY AS PER THE SITE CONDITIONS
 5 720 490 1500
SHALL VARY AS PER THE SITE CONDITIONS
SHALL VARY AS PER THE SITE CONDITIONS
CL-B 10/7.5 50 5 720 490 1500
CL-B 15/11 50 5 800 565 1500
CL-B 20/15 50 5 800 565 1500
CL-H 10/7.5 80 8 650 470 1500
CL-H 15/11 80 8 650 470 1500
CL-H 20/15 80 8 650 470 1500
CL-J 20/15 100 16 840 580 1500
CL-J 25/18.5 100 16 840 580 1500
CL-J 30/22 100 16 840 580 1500
CL-J 40/30 100 16 840 580 1500
CL-J 50/37 100 16 840 580 1500
CL-M 50/37 150 25 1035 640 1500
CL-M 60HP/45 150 25 1110 715 1500
CL-M 75HP/55 150 25 1110 715 1500
CL-M 100/75 150 25 1110 740 1500
CL-M 120/90 150 25 1110 740 1500
Note: All dimensions are in millimeter (mm).
Cantilever Series Pump
Options
  • We offer complete slurry pumping solution for all kind of slurries.
  • All slurry pumps are customised to Cater specific needs of users.
  • Specialised range of slurry pumps for pumping deep sea slurries.
  • Can be offered for pumping high temp. Slurries up to to 90 °C.
  • Option of pontoon mounted slurry pumps also available.
  • Option of twin volute casing.
  • Customised jetting arrangement based on weight and concetration of slurry.
  • Customisable pump stand for maximum slurry pumping.
  • Pumps can be offered in 60 Hz on request.
Recommendations
  • Always flush the pump with clean Water after use.
  • In case of maintenance always use genuine spares.
  • Use Slurry specific slurry hoses for effective slurry handling.
  • Ensure use of proper control panel for proper safety & running of dewatering pumps.
  • Always ensure that pump is properly earth.
