Application
Range of Darling Open Well Submersible Clear Water Pumps consists Of S and M Series Pumps. We are pioneers in this range of pumps and had Indian patent for this product. Our pumps are not only ideal for various agricultural applications but are also very popular for many industrial applications as well. The uniqueness of these submersible clear water pumps is that they are very compact, can be installed in inclined position as well and can offer head up to 140 m in maximum 4 stages.
Domestic
Pumping of water from underground tanks to overhead tanks. | |
Firefighting application. | |
Gardening. |
Industrial
All Kind of Clear Water transfer. | |
Supply of water for Coolants. | |
A. C. Plants & Cooling Towers. | |
Hospitals & hotels. |
Landscape
Fountains. | |
Waterfalls. | |
Gardening. |
Municipal
Municipal Water Supply. | |
Village Water Supply. | |
River Water Pumping. | |
Dams / Canals Pumping. |
Agriculture
Farming. | |
Supply of water from OpenWell. | |
Sprinklers & Drip Irrigation. | |
Canal/ / Dam/ River water pumping. |

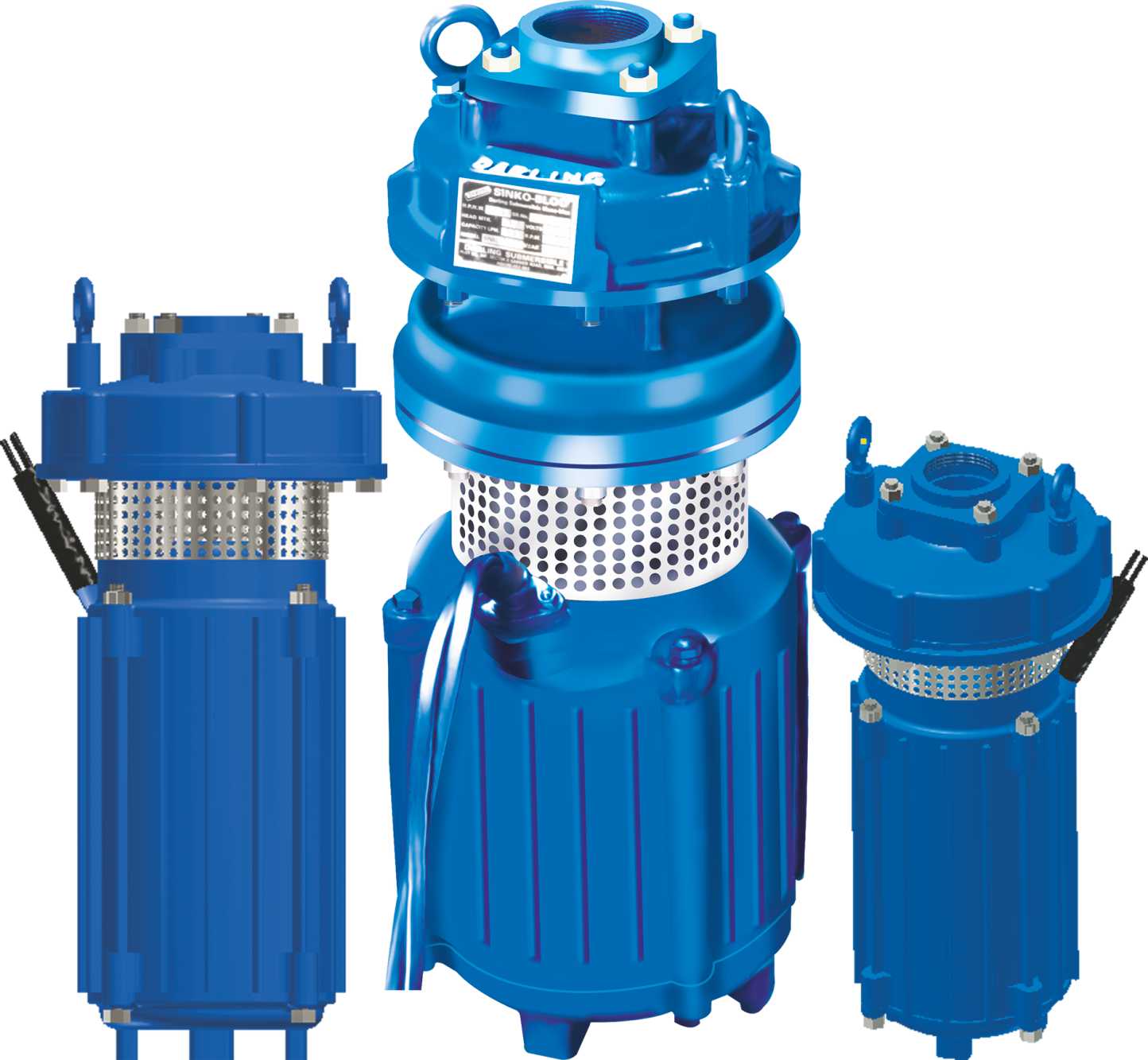

Clear Water Pumps
As far as Openwell submersible pumps in India are concerned, Darling Pumps is the pioneer in it & had Indian patent for these pumps for more than 12 years. Darling Openwell submersible pumps are not only unique in design, but are very compact, sturdy & are highly reliable. Here we offer pumps up to 120 HP & head range up to 140 mtrs. Our pump comes with mechanical seal & ball bearing designs & thus can be installed in inclined position as well. These pumps can be customized for Oil filled motors or Air filled motors designs as well.

Pump
2.2kW to 90 kW
Technical Specification
FLOW | : | Upto 5000 LPM |
HEAD | : | Upto 140 m |
RATING (kW) | : | 2.2kW to 90 kW |
FREQUENCY | : | 50Hz |
SUPPLY | : | Three Phase – 415 V |
MOTOR | : | Wet type / Dry Type |
POLE | : | 2 Pole |
SOLID PASSAGE | : | Nil |
METALS WE DO | : | Cast Iron, Various grades of SS, Bronze, Gun Metal, Duplex |
Family Curve
Industries and Clientele
- Power Sector
- Mines
- Cement
- Steel Plant
- Infrastructure
- Pharma
- Sewage & Effulent
- Government
